Product Sku: 816965005
Brecknell DCSB Pegasus Floor Scales w/ 521 LED Indicator
- Finish: Powder coat paint
- J-Box Construction: ABS plastic
- Loadcell Rated Output: 3 mv/V
- Platform Material: Mild steel
Starting at: $1,975.00
Date Expected: 03/21/2025
Free Shipping
* To lower 48 states when order is more than $35
Drop Ship Item
* Ships direct from manufacturer
Freight Item
Pro Pricing Available
* Click here for details
Have Questions? Talk to an Expert
* Call us at 800-986-0525 or Click for live chat
Product Description

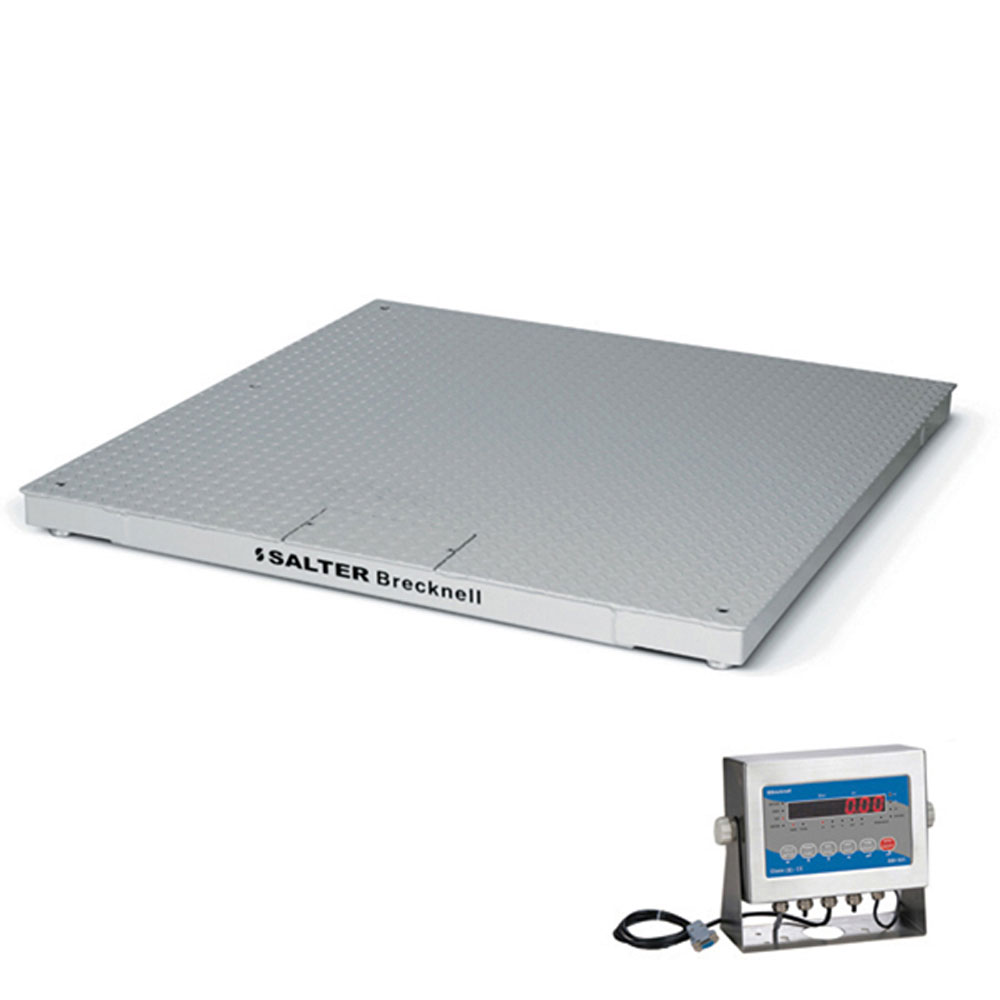

The Salter Brecknell DCSB4848-05 (DCSB) Pegasus Digital Floor Scale features a powder coat paint finish and rugged construction with 0.25" thick top plate with heavy-duty channeled support. This NTEP certified scale has a low 3.1" profile with adjustable leveling feet and a platform measuring 48" x 48". The J-Box Access allows for easy installation and service
Model | Platform | Capacity |
| 816965005352 | 48" x 48" x 3" | 5000 lbs |
| 816965005369 | 60" x 60" x 3" | 5000 lbs |
| 816965005376 | 48" x 48" x 3" | 10000 lbs |
| 816965005383 | 60" x 60" x 3" | 10000 lbs |
Specs & Features
Product Details
Salter-Brecknell-816965005
816965005
Brecknell Scales
Usually ships in
3 days
Freight Truck
Specifications
NTEP at 5000 divisions, Class III
NTEP COC #02-070
100% of rated capacity
Powder coat paint
Salter Brecknell SBI-521LED
ABS plastic
Alloy tool steel potted
350 ohm
3 mv/V
150% of rated capacity
Mild steel
14 to 104 ° F (-10 to 40 ° C)
Features
Corner Protection- Closed corners to prevent damage to leveling feet while installing the scale
J-Box Access- Top access for easy installation and service
Leveling Feet- Four top access holes for a quick installation
Threaded Eye Bolts- Two threaded top access eye-bolt holes for easy mobility and pit service
